GQ-100
●Compact structure,lightweight and easy operation●For pipe diameter Φ32-100mm（1-1/4”-4”）.●Using Φ16mm (5⁄8") sectional soft shafts.●Max. working length: 30M
-Applicable for all kinds of indoor pipes of Φ32-100mm（11/4”-4”）.
-Compact structure, lightweight and easy operation.
-Press the handle, with the locking function, save man power in operation.
-Support is provided, to adjust the height and angle of the machine to accommodate different working environment.
-Using sectional helical flexible shafts of Φ16mm (5⁄8"), pipes of Φ32-100mm（11/4”-4”） in diameter can be cleaned, the soft shafts can be lengthened at will
-Press the clutch, the rotating speed is up to 400 rpm, and the soft shaft stops when the handle is released.
- Input Power: 390w.
-Rated voltages: 220V, 110V, optional; frequency of 50Hz, 60Hz, optional.

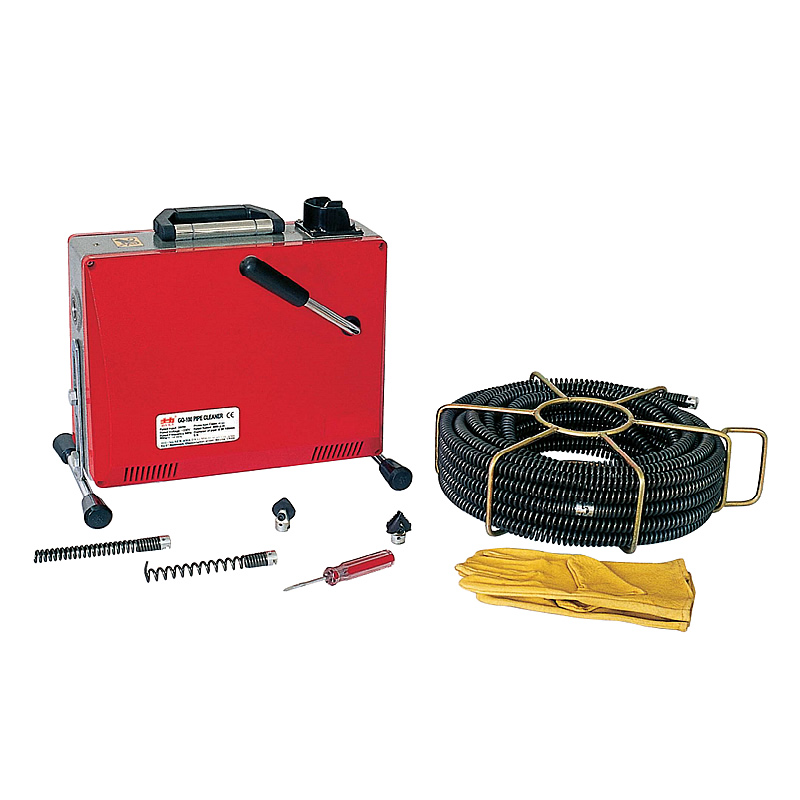

Basic Equipment:
Catalog No. | type. | Description | Weight (kg) | |
2.2012 | GQ-100 | 2.2002 | Main machine | 13.0 |
RH1-2 | Φ16mm soft shafts | 7.26 | ||
ZHa-2 | Φ16mm drills 4 pieces | 0.18 | ||
F-3-a | Φ4 key | 0.03 | ||
F-5-a | Protection gloves | 0.25 | ||
